Building on peat is one of the most complex geotechnical challenges faced in civil engineering. Characterised by high organic content, high moisture, and extreme compressibility, peat presents significant difficulties for both ground engineering and structural stability. Despite these challenges, infrastructure and development on peatland is sometimes unavoidable — particularly in parts of Scotland, Ireland, the Lake District, and certain lowland areas across the UK.
This blog explores the geotechnical difficulties, structural considerations, and design strategies that engineers must account for when building on peat.
Peat is an organic soil formed from the partial decomposition of vegetation in waterlogged environments. It is typically dark brown to black, fibrous, and extremely soft, with moisture contents that can exceed 1000%. Peat layers may vary from a few hundred millimetres to several metres in depth.
From an engineering perspective, peat is:
Peat exhibits both primary and secondary (creep) consolidation, leading to long-term settlement that can continue for years. Structures built directly on peat are highly susceptible to differential settlement, which can damage or distort superstructures.
Where peat is thick or occurs on sloping ground, it can exhibit instability under load, with lateral spreading or sliding failure — especially after drainage or disturbance. This can be triggered by:
Peat has high water content and low permeability. Any disturbance can disrupt the groundwater regime, triggering instability. Moreover, drainage of peat results in oxidation and shrinkage, which accelerates settlement and environmental degradation.

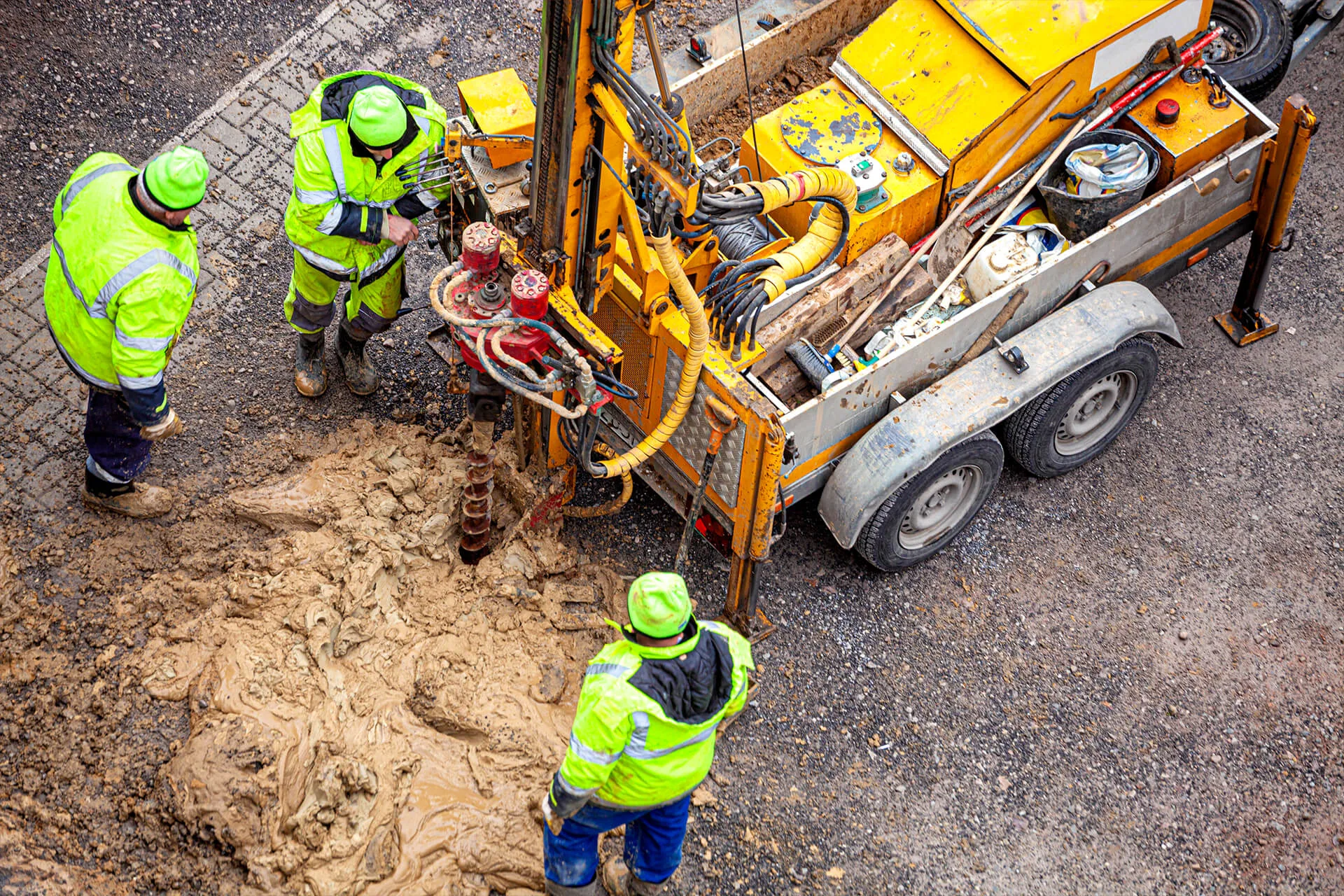

Obtaining reliable geotechnical data is difficult:
Specialist testing such as field vane shear or peat-specific borehole logging is often required.
Obtaining reliable geotechnical data is difficult:
Specialist testing such as field vane shear or peat-specific borehole logging is often required.
Standard shallow foundations are almost never suitable on untreated peat. Alternatives include:
Even with mitigation, some degree of movement is expected. Structures must be designed to tolerate differential settlement, using:
Bridges and culverts crossing peatlands often require special attention to abutments and transitions to prevent stress concentrations or “hanging” spans.
Projects on peat demand robust geotechnical monitoring before, during, and after construction. Settlement plates, inclinometers, and piezometers are used to track performance.
Designers must also consider residual risk — recognising that even well-executed ground improvement measures may not eliminate all uncertainty.
Peatlands are ecologically significant carbon sinks. Construction on peat often results in the release of stored carbon dioxide and damage to biodiversity.
Modern schemes should prioritise:
In Scotland, peat management plans are often required for planning approval on such developments.
| Challenge | Strategy |
|---|---|
|
Low bearing capacity |
Deep piles or geosynthetic load-spreading platforms |
|
Excessive settlement |
Ground improvement, preloading, or structural flexibility |
|
Slope instability |
Avoid excavation, control drainage, staged loading |
|
Difficult testing |
Use vane shear, peat coring, and local expertise |
|
Environmental impact |
Peat management plans, reduce excavation, offset emissions |
Building on peat is never straightforward — it requires a collaborative, multi-disciplinary approach that balances geotechnical, structural, and environmental concerns. With careful investigation, robust design, and proactive monitoring, it is possible to develop safe, sustainable solutions even in the most challenging ground conditions.
